TTW In-wall dehumidifier.

TTW In-wall dehumidifier.

17,000.00د.إ24,000.00د.إ VAT

Clear

In-wall dehumidifier installs behind the wall in indoor pool rooms. Thus, this through the wall dehumidifier is silent & saves space in the swimming pools.

17,000.00د.إ24,000.00د.إ VAT

Clear

In-wall dehumidifier installs behind the wall in indoor pool rooms. Thus, this through the wall dehumidifier is silent & saves space in the swimming pools.

17,000.00د.إ24,000.00د.إ VAT

Clear

In-wall dehumidifier installs behind the wall in indoor pool rooms. Thus, this through the wall dehumidifier is silent & saves space in the swimming pools.

You may also like…

Sale!

Wall mount dehumidifier

DRY 500 Wall mount dehumidifier.

15,500.00د.إ18,300.00د.إ VAT
Sale!

Pool dehumidification

FSD Pool dehumidification System.

16,800.00د.إ 13,800.00د.إ VAT
Sale!

Wall mount dehumidifier

DRY400 Wall dehumidifier.

23,500.00د.إ 17,500.00د.إ VAT
Sale!

Swimming pool dehumidifier

SPD-136L dehumidifier for swimming pool

16,800.00د.إ 13,800.00د.إ VAT


Specifications

A in wall dehumidifier is the most suitable unit for an indoor swimming pool. A through the wall dehumidifier installs behind the wall while only grills are visible in the room.

Specifications

Capacity* [l/24h]

Capacity* *[l/24h]

Casing Type

Casing color

Airflow [m³/h]

Humidity range [%]

Temp. range [°C]

Power consp. [W]

Power [V/Hz/f]

Sound level [dB(A)]

Heat output [W]

Refrigerant

Weight [kg]

Product size [mm]

400TTW

58

48

Plastic/Metal

White

600

20-100

15-42

700

230/1ph/50

42

1900

R410A

40

780 x 660 x 255

500TTW

101

66

Plastic/Metal

White

800

20-100

15-42

1000

230/1ph/50

44

3500

R410A

60

1245 x 660 x 255

800TTW

136

90

Plastic/Metal

White

1100

20-100

15-42

1600

230/1ph/50

46

5100

R410A

100

1247 x 950 x 300

1200TTW

181

120

Plastic/Metal

White

1200

20-100

15-42

2150

230/1ph/50

46

5250

R410A

103

1247 x 950 x 300

* At 30°C, 80% RH  |  ** At 30°C, 60% RH  |  Specification and data may subject to change without prior notice.

In-wall dehumidifier.

An in-wall dehumidifier is the smartest choice for a compact indoor pool room. A through the wall dehumidifier works like any other unit. Also, it shares the same components as any other unit. But, it brings lots of value addition than a portable or duct swimming pool dehumidifier. It offers user flexibility in the installation location. At the same time, it brings more advantages.

An in the wall dehumidifier is the recent development in the HVAC industry. Hence, it is less popular among contractors and consultants. Coming to the fixing, it is a little tricky as compared to a simple wall-mounted unit. Thus, it recommended planning for this unit at the designing stage itself. Retrofitting needs some of the construction changes. This type of system is ideal for indoor swimming pools. Having said that, we can install it at any place. Wherever there is a wall, you can fix this unit.

DRY through wall dehumidifier.

Microwell offers an excellent quality of DRY series, an in-wall dehumidifier. DRY series in built-in wall dehumidifiers designed for indoor and outdoor installation. Hence, it helps to save lots of space. Besides, users need not be a compromise of athletics of the room. By default, the unit supplied with a wall mount bracket. But, when you order this in the wall unit, it accompanied by a kit.

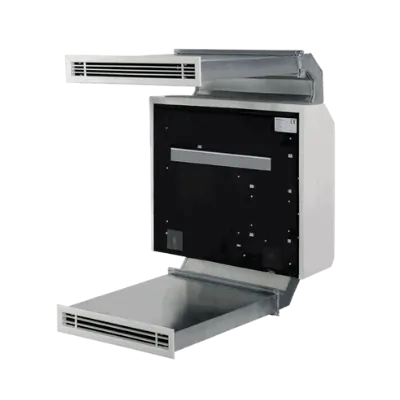

This kit consists of the main chassis cover made up of galvanized metal with powder coating. This chassis cover has duct holes for air in and air out. Also, it includes a through-the-wall duct set and grill. In general, the air suction is from the down backside and air out from the topside. From the pool room, only two grills are visible. Technically, a through the wall dehumidifier should call as behind the wall unit. It only delivers air through the wall. The actual installation is behind the wall.

Advantages of an in-wall dehumidifier.

No doubt, a through the wall dehumidifier brings lots of advantages.

  • DRY in the wall unit installed behind the wall. Hence, its operation sound can not add in the room. As a result, we can achieve silence in indoor pool space.
  • It not fixed in the area that is going to dehumidify. Thus, it helps to maintain the aesthetics of the room.
  • This machine saves working space. And, when it installs as wall mount configuration behind the wall, it even saves more space.
  • Even though the unit not fitted inside the area, it can be fully controlled from the space.
  • This an in-wall dehumidifier, has suitable IP standards to fix it in outdoor conditions.

Specifications.

DRY series though the wall dehumidifier, comprises of best quality components. The heart of the dehumidification system is an air exchanger coil with Goldfine coating. Thus, this coating will avoid the sticking of a water droplet to the coil. Copper pipe coated with zing coating. Also, to protect it from corrosion, coil coated with epoxy. It has a radial fan made by EBM-PAPST. Hence, the fan is silent, compact, and efficient. When it comes to energy, it consumes 36% less power than other brands.

It is a system with dehumidifying and heating in one box. Each model capable of heat recovery. The DRY unit can recover double energy than it consumes. During dehumidification, this unit can provide free heating. If this heating is not enough, you can add a Low-pressure hot water (LPHW) coil as an option. For low noise, the unit protected from vibration. Users can order this through the wall dehumidifier with various optional features. A fiberglass dust filter is a standard part of every machine.

Through the wall dehumidifier installation.

Installation of DRY an in-wall dehumidifier, needs an expert hand. Every unit provided with a manual, floor feet, and through the wall kit. With this kit, a single technician can install this machine. Or, the pool owner can himself commission it. This kit consists of through the wall duct and grills. Hence, the unit hung behind any wall having a thickness up to 400 mm. The system can be a floor mount or wall mount.

The through the wall ducts use to supply and exhaust air. One end of these ducts is connected to the machine while another end to removable grills. Thus, only grills are visible inside the room. Also, to make fixing easy, detailed drawings with dimensions in the manual. As an option, the unit can connect to a wired or wireless humidistat. So, users can operate this through the wall dehumidifier from the pool room. In most cases, the unit positioned at the pump room and ducted to pool space.

USPs

  • DRY built-in wall dehumidifier is elegant with behind wall fixing.
  • It is a plug and play device that anyone can install.
  • The unit has a radial fan and a micro compressor. Thus, the unit is efficient and silent.
  • An external wired or wireless humidity is compatible with this system. Hence, this an in-wall dehumidifier is easy to operate.
  • Coils are with epoxy and zinc coat. As a consequence, it is corrosion-proof and thus durable.
  • A DRY through the wall dehumidifier has a heat recovery system. For extra heating, LPHW coil or electrical heater.
  • As a standard feature, each DRY model has a facility to take fresh air intake.


Uses of in-wall dehumidifier.

01

To save space, it used in pool rooms.

02

It installs in jacuzzi & hot tub rooms.

03

Ideal for wellness centers & hotels.

04

Best for spas, Gym and fitness centers.

05

It also used at drying room & breweries.

06

TTK units used at museums and archives.
