SPD Inline duct dehumidifier

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

SPD Inline duct dehumidifier

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

16,800.00د.إ 13,800.00د.إ VAT

Inline duct dehumidifier widely uses for indoor pool rooms. SPD is a small and compact whole-house dehumidifier for ductwork in UAE & Saudi Arabia.

16,800.00د.إ 13,800.00د.إ VAT

Inline duct dehumidifier widely uses for indoor pool rooms. SPD is a small and compact whole-house dehumidifier for ductwork in UAE & Saudi Arabia.

16,800.00د.إ 13,800.00د.إ VAT

Inline duct dehumidifier widely uses for indoor pool rooms. SPD is a small and compact whole-house dehumidifier for ductwork in UAE & Saudi Arabia.

You may also like…

Sale!
8,300.00د.إ 6,900.00د.إ VAT
Sale!

Commercial dehumidifier

CDM-50L best commercial dehumidifier

5,600.00د.إ 4,300.00د.إ VAT
Sale!
9,900.00د.إ 7,900.00د.إ VAT
Sale!
8,900.00د.إ 7,900.00د.إ VAT

Inline duct dehumidifier features.

Connect inline duct dehumidifier with your AC duct to reduce humidity.

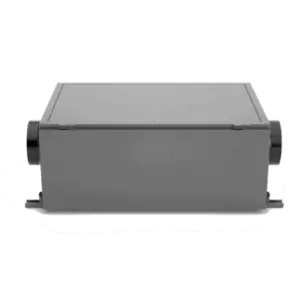

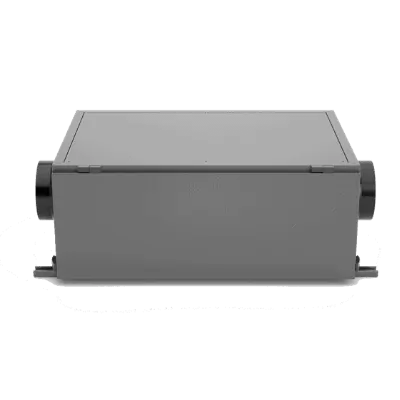

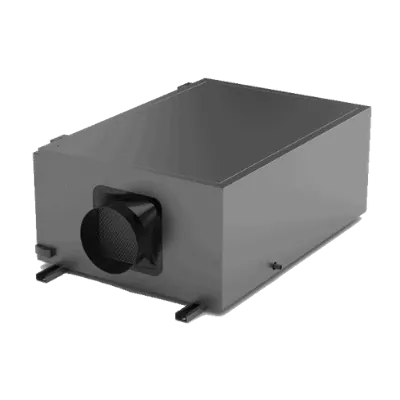

SPD-136L duct mounted dehumidifier.


Specifications

SPD inline duct dehumidifier is suitable for indoor pool rooms and spas. It can have wall-mounted or ceiling suspended installation. Please find below brief specs.

System

  • Capacity*: 136 Liters/day
  • Volt: 220-240V/50 Hz
  • Power**: 1100 Watts
  • Air Volume: 1100 CMH
  • Coolant: R410A
  • Running Temp.: 5 – 38°C
  • Compressor: Panasonic/LG

General

  • Digital Controller: Yes
  • Adjust Humidistat: Yes
  • Automatic defrost: Yes
  • External drain: Yes
  • Filter: Basic filter.
  • Hygrometer: Yes
  • IP rating: IPX04

Dimension and Weight

  • Product weight: 58 kg
  • Package weight: 65 kg
  • Product size: 1080 x 665 x 375 mm
  • Package size: 1180 × 740 × 540 mm

* At 30°C, 80% RH  |  **Max power 1760 Watt  |   Specification and data may subject to change without prior notice.

Inline duct dehumidifier.

As the name suggests, we can connect inline duct dehumidifier in series with the AC duct. In some cases, we can plug in parallel also. Most applications demand dry air before it delivered by AC. Also, sometimes we need to dry fresh air before injecting it into the cooling system. In such cases, a commercial ducted dehumidifier comes into the picture.

Everyone wast to use spaces to the full extend. Thus, a portable dehumidifier cannot be the right solution. SPD-136L small ducted dehumidifier can be mount above a false ceiling. As a result, it saves space, and we get rid of machine operation sound. Commercial duct dehumidifier helps to keep a room dry without losses. It saves energy, and it is affordable too. Hence, if often use at indoor swimming pools. Please note, indoor pool room has the worst king of humidity load. And, this unit can withstand it.

Why inline duct dehumidifier?

A commercial ducted dehumidifier has various advantages over portable or wall mount unit. First, it saves space. In many cities, per square feet property rate higher than the cost of dehumidifiers. Hence, fixing duct dehumidifiers above the false ceiling is always a viable option. Considering the aesthetic, invisible installation is a good idea.

Second, duct mount dehumidifier available at a higher capacity. In particular, it can customize for high process air. In other words, it can process more air at one time. Thus, it can dry more air and reduce moisture at a faster rate. But, portable and wall mount dehumidifier has a limitation on this factor. Third and most important, an inline duct dehumidifier can act as an air purifier also. As an option, we can order these units will multi-stage filters. Filtration is an essential feature if you are using a system for fresh air drying.

SPD-136L swimming pool dehumidifier.

CtrlTech offers SPD series swimming pool dehumidifier. Although, this unit can use at warehouses, spas, and control rooms. Body casing built using cold-rolled sheet metal with epoxy powder coating paint. Also, the unit has a rotary compressor with R410a climate protective gas. The insulation used from inside to reduce noise. Thus, the system generates the lowest noise possible.

Double internal thread copper condenser has high efficiency. Besides, it has an energy-saving, AC / EC centrifugal fan. As a consequence, the unit has low noise even at static pressure operation. Internal drain pan coated with anti-corrosive material. Every machine accompanied by one digital controller. This inline duct dehumidifier is easy to install and maintain. For fixing, we need a single-phase power and drain point only.

How inline duct dehumidifier works?

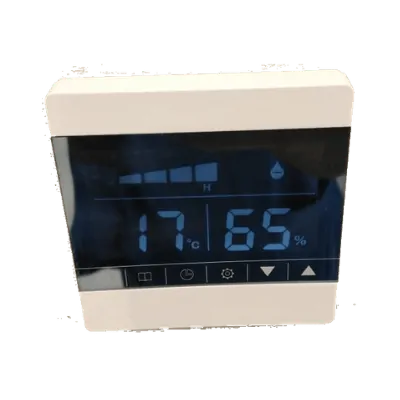

As mentioned before, the unit supplied with an LCD touch screen controller. It is a wall mount controller. From this controller, this indoor pool dehumidifier can operate. To set humidity, the user needs to press the set button. After that, the screen starts flashing, and the user can adjust the required moisture. The machine can set in fresh air indoor air dehumidification mode.

In fresh air mode, once humidity reduced to set value, the compressor gets switched off. But, the fan keeps working. And in indoor air mode, compressor and fan both stop when moisture reduces to set point. When room humidity 5% higher than the set value, the system starts itself. When dehumidification gets on, the compressor sign glow on the panel. The unit has delayed start protection. Whenever the inline duct dehumidifier gets on, the compressor starts after 3 minutes. This call delay starts protection.

USPs of SPD-136L

  • This unit has a flat design. Hence, it can install at a lower height ceiling also.
  • Insulation has used inside the unit. So, the machine generates less noise.
  • With a wall mount controller, the system is easy to operate.
  • As far as fixing and maintenance concerned, any technician can do it.
  • A rotary compressor and centrifugal fan make dehumidifier efficient and silent.
  • With an optional air filter, the unit ensures air purification.
  • For longer life, the evaporator and condenser of this inline duct dehumidifier are coated with epoxy.


Uses of inline duct dehumidifier.

01

It has a slim design. Hence, it uses in pool rooms.

02

It is silent in working. Thus, it installs in spas.

03

With a power-saving design, it uses at warehouses.

04

It used at archives, museums, & laboratories.

05

Due to duct, it used as a whole-house dehumidifier.

06

It installs in crowded places like the gym and clubs.

1 review for SPD Inline duct dehumidifier

  1. Muhammed Jasil

    We supplied this swimming pool dehumidifier for our client for his residential pool. Before installation there was major issue of high humidity. And it solved with installation of two SPD units. Thaks
